The Zintra™ Acoustic Baffle Systems are an easy to install replacement to standard ceiling tile
systems. Zintra™ Acoustic Baffles are an aesthetically pleasing and high performance ceiling solution
that provides exceptional noise reduction. Zintra™ Acoustic Baffles are ideally suited for large noisy
spaces in education, institutional, retail, restaurants and airport projects.
Comes complete with hardware to install Zintra™ Acoustic 1/2" baffles
Easy to install ceiling solution
NRC = 0.90
Customizable size, baffle spacing and baffle depth
Creates a unique texture and aesthetic for ceilings
Create custom designs and shapes
Flat packed for cost effective transport
5 1/2" / 140mm or 10" / 254mm
4' x 4' / 1220mm x 1220mm & 4' x 9' / 1220mm x 2745mm
Pre-assembled aluminum frame cross runners, pop-riveted to tapered channel.
Pre-cut Zintra™ Acoustic Panels.
Aluminium frame connectors & end caps.
Complete hanging hardware including 5'/ 1525 mm of aircraft wire and adjustable hardware.
See Clouds Specification for detail.
Clear satin aluminum or in black or white.

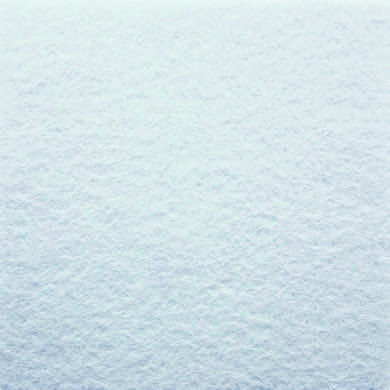

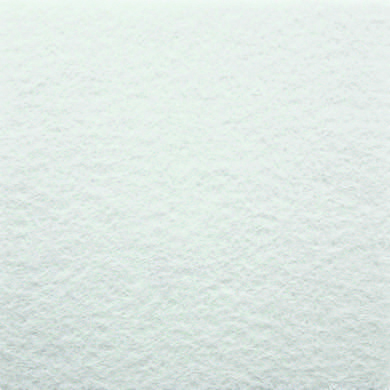

16 standard colors.
1/2" / 12mm (1" thick option available)
Insert pre-cut Zintra™ Acoustic 1/2" lengths into each tapered channel.
Install frame direct to ceiling substrate or hang via aircraft wire (provided).
In accordance with ASTM-E84, Zintra™ Acoustic 1/2" Panels achieve a Class A Flame Spread - passes CAN ULC S102-10.
Vacuum to remove dust.
Remove spills immediately using a clean damp cloth or with soap and water.
Carpet and fabric cleaners can be used - always test an inconspicuous area first.
Stain repellant coating available for additional protection.
To order a sample please select a desired colour.
To place an order for Zintra Acoustic Solutions please call Customer Service: 1-800-268-1300
STANDARD BAFFLE OPTIONS
Size 4'x4' and 4'x9'
10" Canyon A
10" Canyon B
